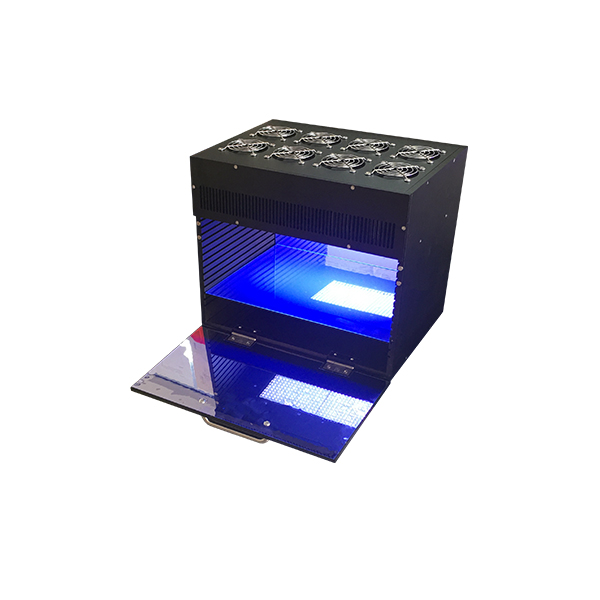

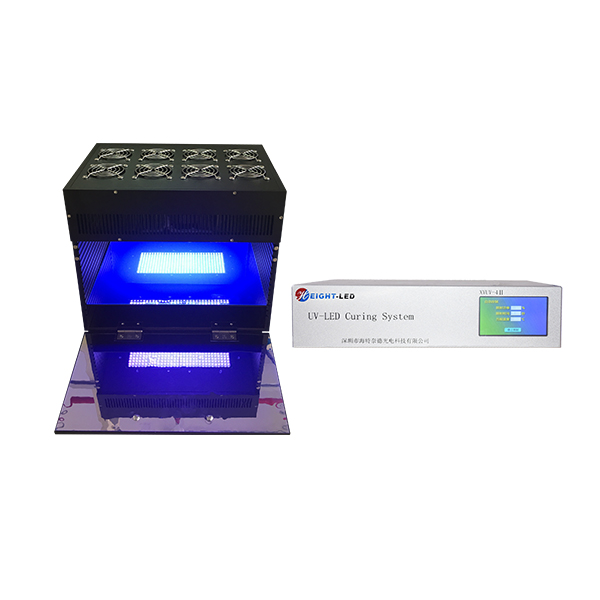

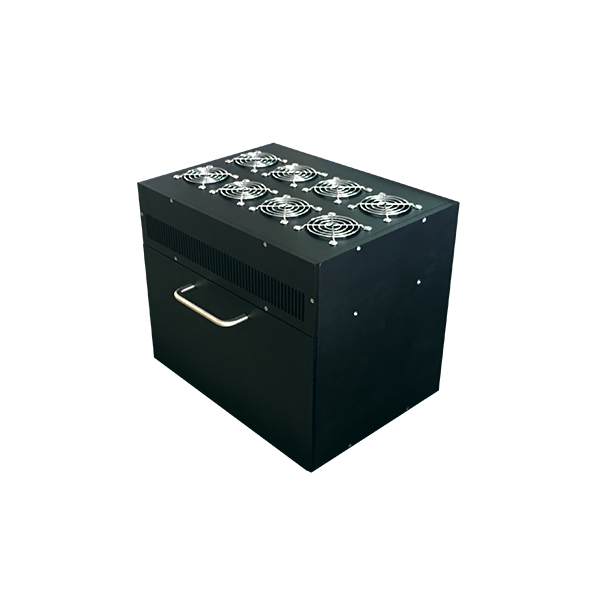

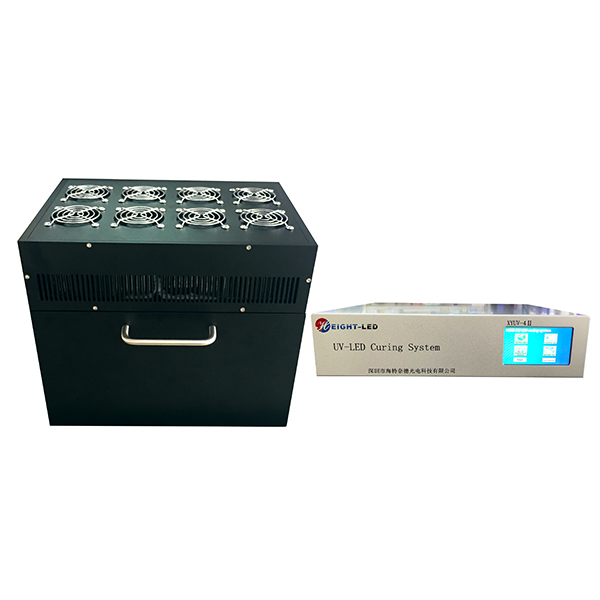

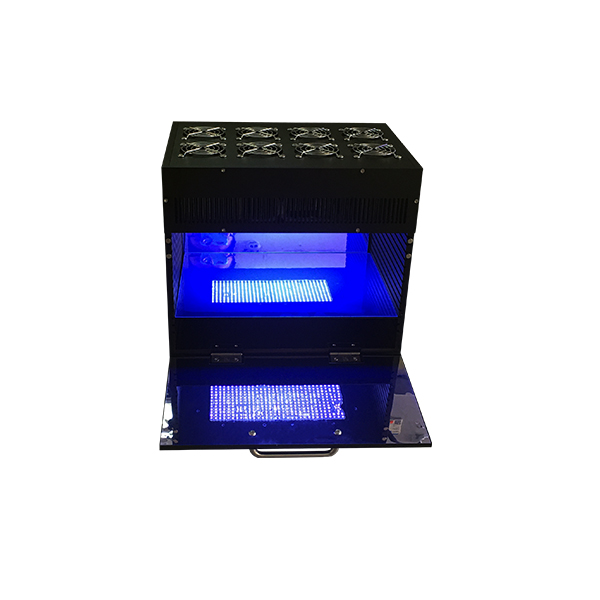

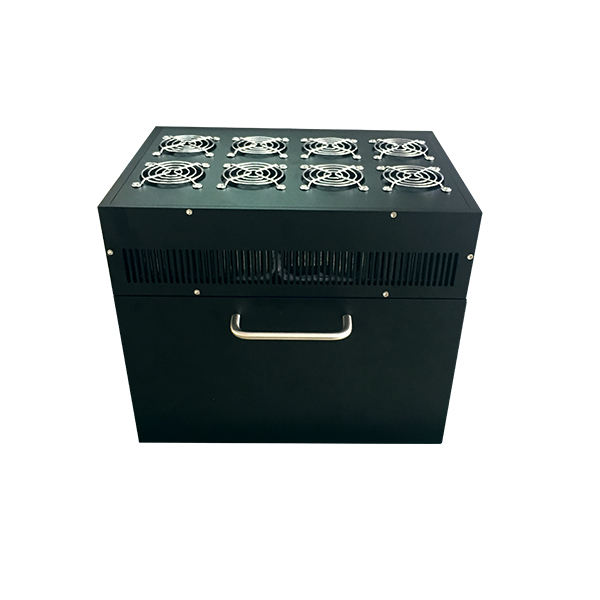

The UVLED curing oven is a high-performance UVLED surface light source curing system. The system mainly includes an oven and a controller. The oven adopts a box structure with a built-in uvled curing light source. The UVLED irradiation head of this system is integrated with imported high-intensity UV LEDs. The UV spectrum wavelength is 365nm. It uses forced air cooling. The effective curing area is 200X100mm. It supports external signal input and triggering. It can be equipped with semi-automatic or fully automatic production lines.
Product Features
.No infrared radiation, cold light source, suitable for curing all kinds of heat sensitive materials.
. No need to warm up when starting up, it is ready to use immediately, the maximum light intensity can be reached
in an instant.
.Power saving, easy to control.
. Mercury-free and ozone-free
Applications
.Electronics: Micro speakers, motors, cameras, lenses, displays, PCBA, etc.
.medical instruments
.Research institutes
.laboratory
