I. Equipment features

1. the device supports real-time monitoring of UVLED current, UVLED fault alarm function and energy-saving protection function.

2. the device provides continuous mode, back-end mode, regional mode optional; continuous mode: click the start button, UV machine conveyor belt and UVLED has been working, click the stop button UV machine stops working; back-end mode: click the start button, the UV machine conveyor belt and UVLED began to work, when the back-end sensors sensed the product, the conveyor belt and the UVLED stops working when the product is taken away Regional mode: click the start button UV machine conveyor belt began to work, when the front end of the region to detect the product UVLED began to work, when the back end of the region to detect the product left, the UVLED stopped working, when the back-end sensors sense the product, the conveyor belt stops working, when the product is taken away to continue to enter the next cycle.

3. the equipment has digital dimming, delayed shutdown fan heat fan, history of irradiation time query and other functions.

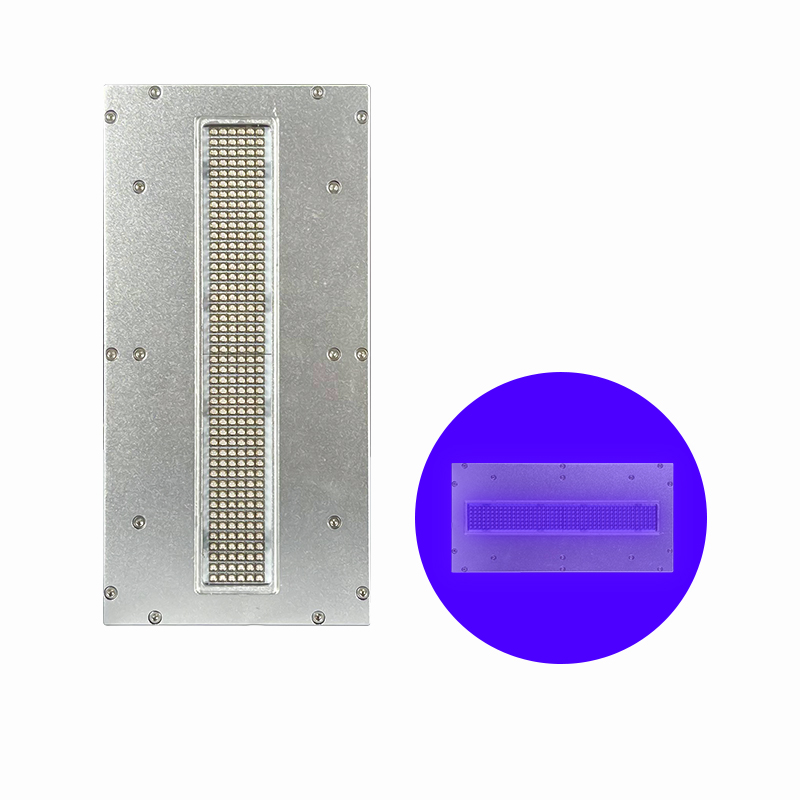

Second, the light source characteristics

1. high efficiency and energy saving

UVLED output band concentration, high photoelectric conversion rate, energy saving, fast curing speed, high productivity.

2、Wide range of application

UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

3、Long life

UVLED long life, reduce the investment cost of equipment. That is on and off, no need to warm up, the number of switches does not affect the service life.

4、Green

Comply with RoHS, does not contain mercury.
