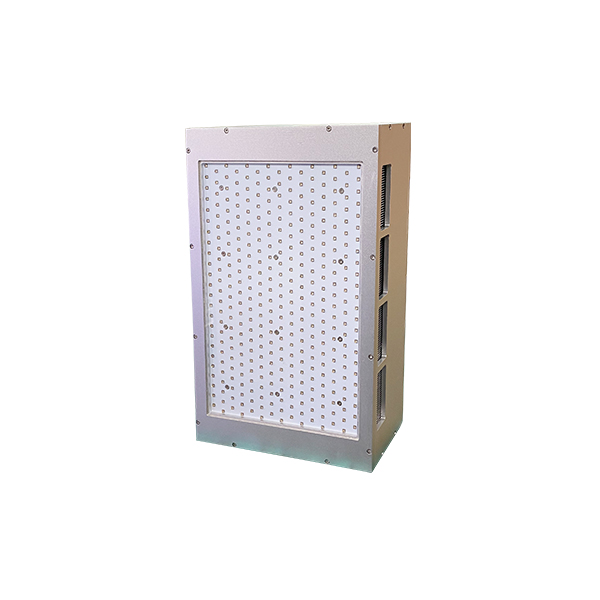

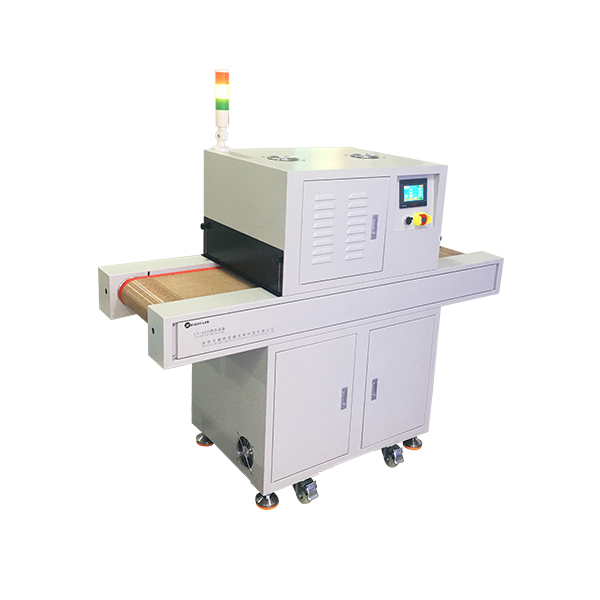

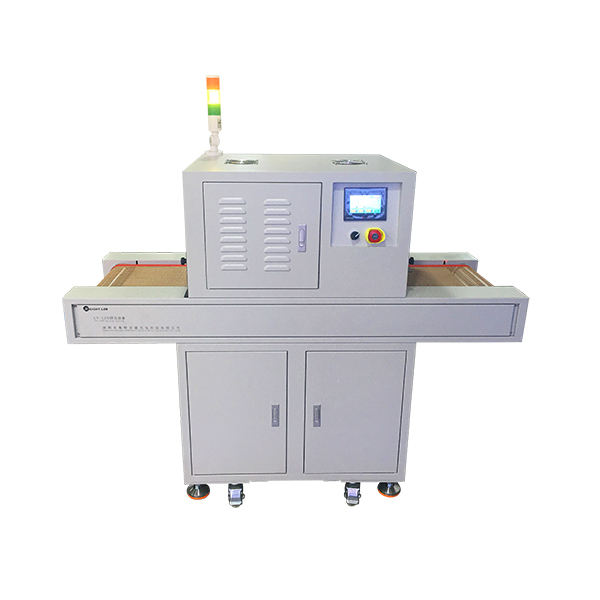

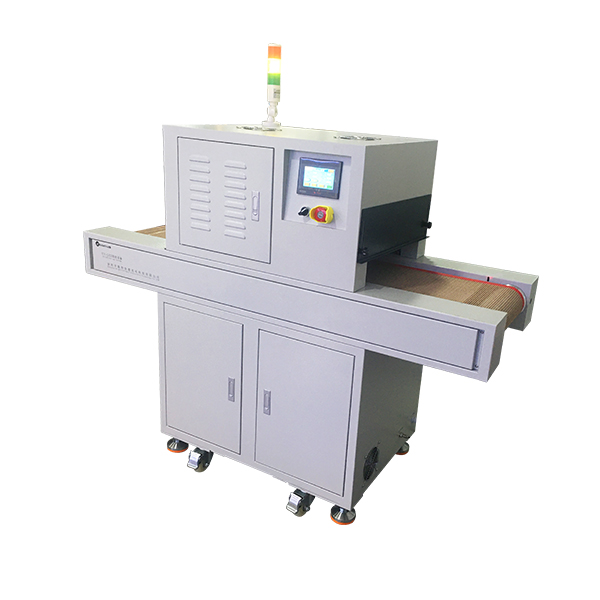

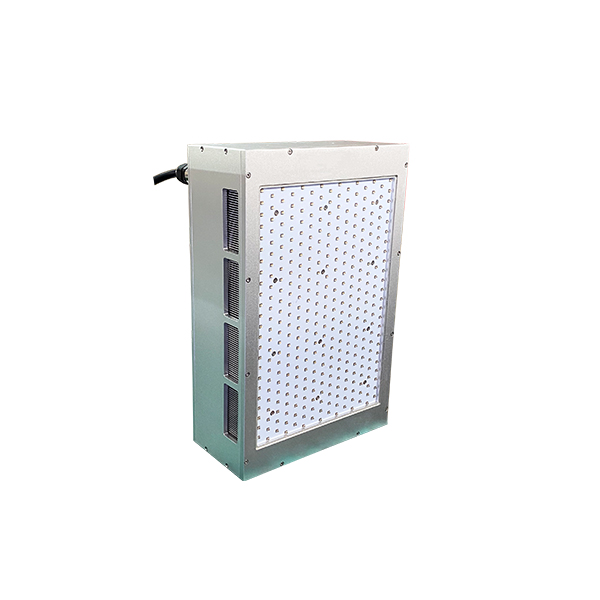

HTCS-II-FS300200-BL cabinet curing machine is a high-performance UVLED surface light source curing system, the system mainly consists of controller, UVLED irradiation head, conveyor and connecting line.The UVLED irradiation head adopts the imported high-intensity UV LEDs, UV spectral wavelengths of 365 nm, 385 nm, 395 nm, 405 nm optional, using forced air cooling heat dissipation, the effective curing area of 300x200mm, supporting external signal input and trigger, can be equipped with semi-automatic or fully automatic production line. Forced air-cooled heat dissipation, effective curing area of 300x200mm, support for external signal input and trigger, can be equipped with semi-automatic or fully automatic production line.

1、UV LED irradiation head (effective irradiation width): 300x200mm (can be customized);

2. UV LED lamp distance from the conveyor belt is adjustable: 10-50mm;

3. UV LED lamp power density: 800mW/cm2 (can be customized);

4. UV light intensity adjustable: 1%-100%;

5. reflector: aluminum reflector built-in imported reflective aluminum, reflective efficiency, long service life;

6、Conveyor belt width: 300mm;

7. conveyor belt material: Teflon mesh belt or stainless steel mesh belt for self-selection;

8. conveying speed: 1-10 meters infinitely adjustable;

9. LED lamp beads that is open and light, no need to preheat, immediately start curing work;

10. roller: surface knurling, to ensure smooth transportation;

11. the whole machine cooling method: air-cooled;

12. the machine material: sheet metal;

13、Appearance of the whole machine: plastic spraying computer white

14. machine specifications: L1494 * W570 * H1158mm;

15. power wiring: 220VAC 50HZ;
