High light out of alignment, good uniformity. Do not preheat the boot, that is open to use, instantaneous maximum light intensity. No infrared radiation, cold light source, suitable for all kinds of heat-sensitive materials curing. The machine uses 304 stainless steel, hood can be opened and closed with the need. Does not contain mercury, does not produce ozone safety and environmental protection. Infrared sensor intelligent control, start and stop control on demand

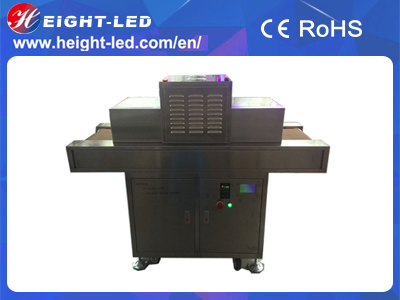

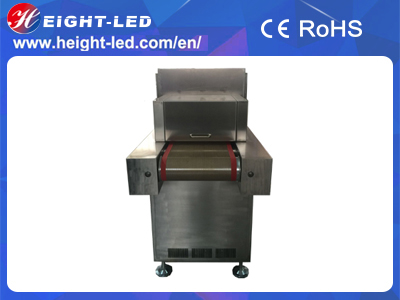

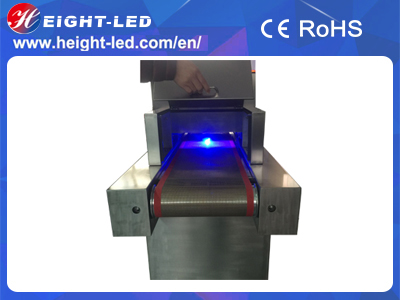

HTCS-II-SS300200-NL is a high-performance UVLED surface curing system designed for UV adhesive curing.

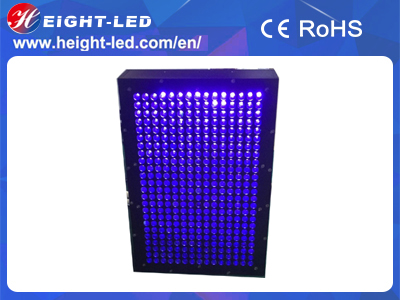

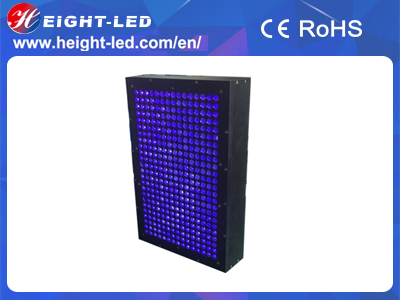

The system mainly consists of a control system,a UVLED head and a conveyor belt.The machine UVLED irradiation
head with imported high-intensity UV LED integrated UV wavelength of 365nm, single LED front quartz mirror
installed to improve the LED light output accuracy and uniformity, uniformity up to 90%,the whole machine
material 304 stainless steel, Teflon conveyor belt, width of conveyor is 300mm.
