This is a high performance three sides light emitting UV curing system designed for UV adhesive curing.The UV-LED curing system adopts the LED lighting method, and the LED with different wavelength of 365nm, 385nm, 395nm and 405nm wavelength can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.

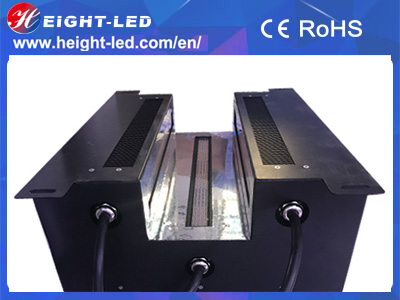

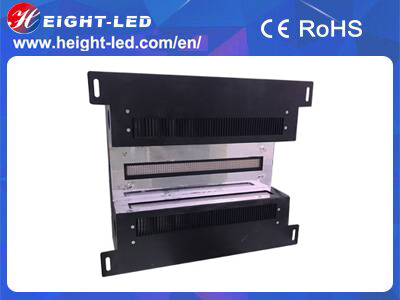

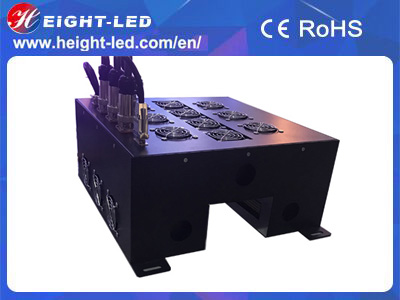

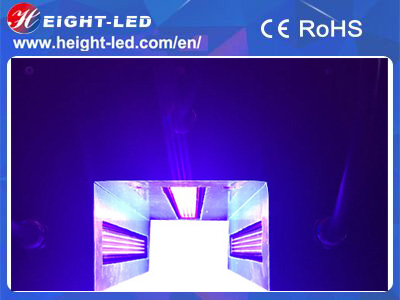

HTUV-4ll-FB30020-NH-3 is a high quality UVLED surface light sourc curing system, the system includes the controller, UVLED irradiation head and cable. UVLED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the use of forced air cooling, with three sides light emitting window, the effective curing area of 300x20mm, support for external signal input and trigger, can be equipped with semi-automatic or fully automated production line and printing machine.
